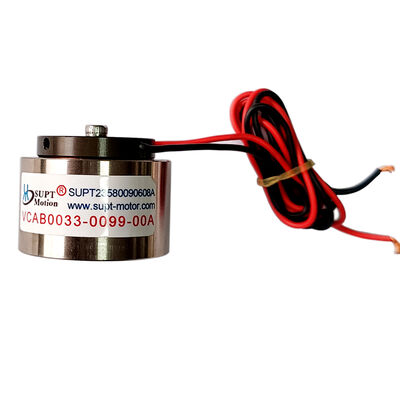

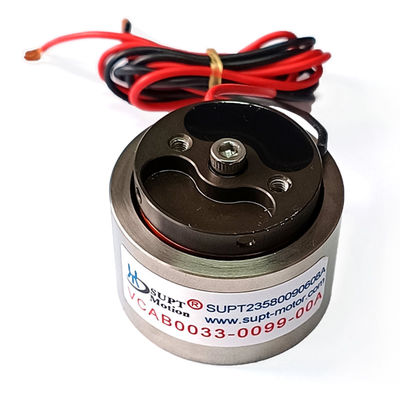

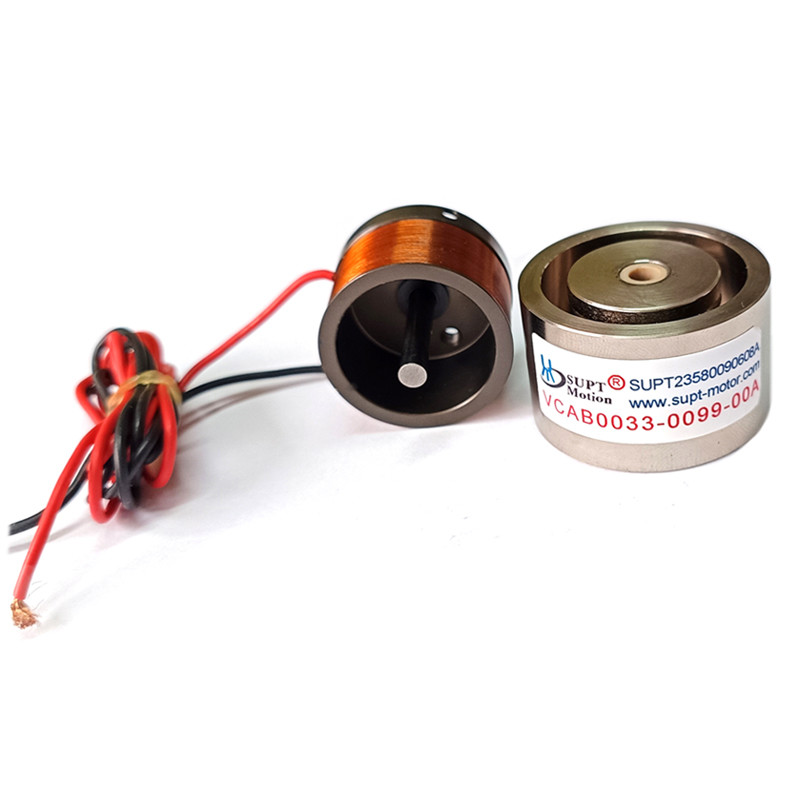

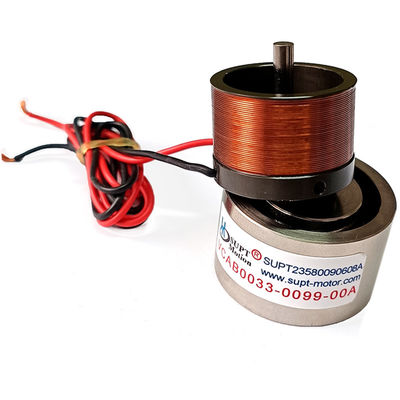

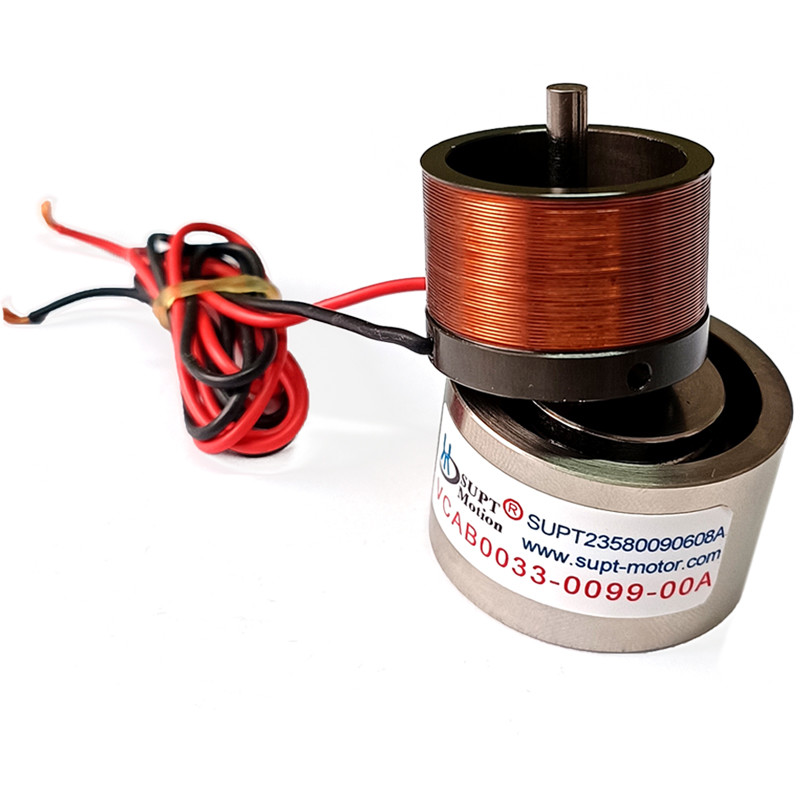

24V High Response Linear Voice Coil Motor For 3C Electronics Assembly

  • 24V High Response Linear Voice Coil Motor For 3C Electronics Assembly
  • 24V High Response Linear Voice Coil Motor For 3C Electronics Assembly
  • 24V High Response Linear Voice Coil Motor For 3C Electronics Assembly
  • 24V High Response Linear Voice Coil Motor For 3C Electronics Assembly
Luogo di origine porcellana, Suzhou
Marca SUPT MOTION
Certificazione ISO9001,CE,3C
Numero di modello Serie di VCAB
Quantità di ordine minimo 2 pezzi
Prezzo $102-$160
Imballaggi particolari Imballaggi personalizzati, ecc.
Tempi di consegna 1-5 pezzi, 5 giorni. >20 pezzi, da negoziare
Termini di pagamento T/T
Capacità di alimentazione Da negoziare

Contattimi gratis campioni e buoni.

WhatsAPP:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Garanzia 3 mesi-1 anno Modello del prodotto VCAB0033-0099-00A
peso ((g) 5.87 Forza di picco (N) 33
Corso totale (mm) 9.9 Tensione massima (V) 24
Applicazione Prodotto automatico Precisione di posizionamento Alto
Tipo di prodotto motore di bobina di voce lineare Commutazione Spazzola
Forza continua (N) 8N Campi di applicazione Elettronica 3C, semiconduttori, automazione, ottica, apparecchiature di ispezione
Lasciate un messaggio
Descrizione di prodotto

Product Description:

SUPT VCAB series linear voice coil motors are direct-drive actuators specifically designed for high-speed, micron-level precision motion. Featuring a coreless design, they achieve advanced performance including high frequency response, high speed, high acceleration, high precision, frictionless operation, and zero backlash. They are widely used in 3C manufacturing, visual inspection, semiconductors, medical instruments, and scientific research equipment.

Linear Voice Coil Motors have become one of the most essential precision actuators in the 3C electronics industry due to their high frequency response, ultra-precise positioning, high acceleration, and frictionless motion structure. As smartphones, tablets, wearables, and laptops continue to evolve toward thinner form factors and higher consistency, automation equipment requires micron-level accuracy and millisecond-level dynamic performance. Linear Voice Coil Motors are uniquely suited to meet these demanding requirements.

In 3C assembly processes, Linear Voice Coil Motors are widely used in high-speed pick-and-place systems, precision press-fit stations, laser welding, dispensing control, FPC alignment, camera module production, OIS calibration, and display module assembly. Thanks to their direct-drive linear force output, with no cogging, no backlash, and no mechanical transmission, Linear Voice Coil Motors provide nanometer-level positional resolution. This enables highly stable motion for tasks that require extremely fine alignment, precise press-fit depth control, or real-time trajectory adjustments.

Features:

  • 9.9 mm stroke suitable for rapid short-distance motion
  • High frequency response for fast inspection and micro-adjustment
  • High thrust density enabling strong acceleration
  • Coreless structure with zero cogging
  • 24V input for easy industrial integration
  • Compact and lightweight for embedded modules and fixtures

General Specifications (Varies by Model)

  • Rated Voltage: 24V
  • Continuous Force: 8 N
  • Peak Force: 33 N
  • Stroke: 5–60 mm / customizable
  • Frequency Response: ≥ 100 Hz
  • Repeatability: ≤1–3 µm
  • Structure: Coreless coil + high-energy magnet array
  • Cooling: Natural convection (air/liquid cooling optional)

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10

24V High Response Linear Voice Coil Motor For 3C Electronics Assembly 0

Applications:

  • Precision assembly & micro-positioning
  • Optical alignment modules
  • Compact test machines
  • Medical analysis / microfluidics
  • Research laboratory stages



24V High Response Linear Voice Coil Motor For 3C Electronics Assembly 1
