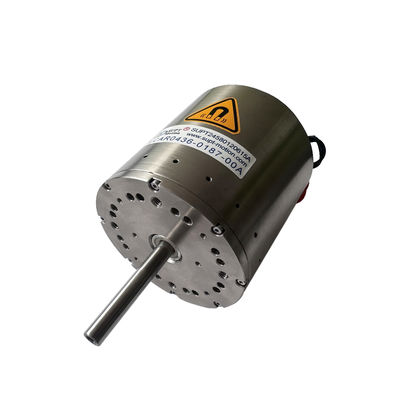

33N 22.4mm Stroke High Continuous Force Shaft Voice Coil Motor For Automation
| Luogo di origine | Jiangsu, Cina |
|---|---|
| Marca | SUPT |
| Certificazione | ISO9001,CE,3C |
| Numero di modello | VCAB0033-0224-00A |
| Quantità di ordine minimo | ≥1 |
| Prezzo | $120.00/pieces 1-60 pieces |
| Imballaggi particolari | imballaggio in cartone |
| Tempi di consegna | Ordine campione 2-3 giorni,altro un giorno lavorativo, merci in blocco da negoziare |
| Termini di pagamento | T/T |
| Capacità di alimentazione | Negoziabile |
Dettagli
| Voltaggio (V) | 26,9 | Tipo | Micromotore |
|---|---|---|---|
| Coppia | Richieste | Costruzione | Magnete permanente |
| Funzione di protezione | Totalmente chiuso | Velocità (giri/min) | Ad alta velocità |
| Forza di picco ((N) | 33 | Viaggio massimo (mm) | 22,4 |
| motore a bobina vocale ((V) | 26.7 | Peso del rotore ((kg) | 69 |
| Diametro dello statore (millimetro) | 58 | Forza continua ((N) | 13.5 |
| Evidenziare | 33N high force voice coil motor,22.4mm stroke voice coil motor,continuous force linear voice coil motor |
||
Descrizione di prodotto
Product Description:
The VCAB0033-0224-00A linear voice coil motor delivers a peak thrust of 33 N and has a total stroke of 22.4 mm. It provides the necessary thrust for assembly operations, workpiece transfer, and active damping systems, and is specifically designed for use in automated equipment.
The linear voice coil motor integrates precision linear bearings directly into the motor housing, ensuring precise, low-friction guidance throughout the entire stroke range. The moving shaft is made of lightweight, high-rigidity, and wear-resistant materials, providing reliable performance during reciprocating motion cycles.
A key feature of this linear voice coil motor is its continuous rated thrust of up to 13.5 N at 25°C, which accounts for approximately 41% of its peak thrust. This high ratio of continuous thrust to peak thrust ensures that the equipment does not overheat during continuous operation, making it ideal for applications requiring frequent or prolonged actuation, such as pick-and-place cycles or continuous vibration damping. The stator has a diameter of 58 mm, and the shaft end is equipped with an M3 internal thread to enable a secure mechanical connection.
In automated assembly systems, the VCAB0033-0224-00A voice coil motor excels at tasks requiring high thrust and precise positioning, such as pressing bearings into housings, inserting connectors, or applying controlled clamping forces. The linear force-current characteristic supports programmable force curves, enabling the motor to first make gentle contact and then apply higher positioning forces without the need for complex mechanical structures. The semi-enclosed housing design protects the internal precision bearings and coil assemblies from dust and contaminants, which is critical for reliable operation in industrial automation environments.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
Automated assembly presses
Bearing insertion
Connector seating
Clamping and holding fixtures
Active vibration damping
Industrial robot actuation
